TouellSkouarn Jedonian Hz/V converter, bidirectional

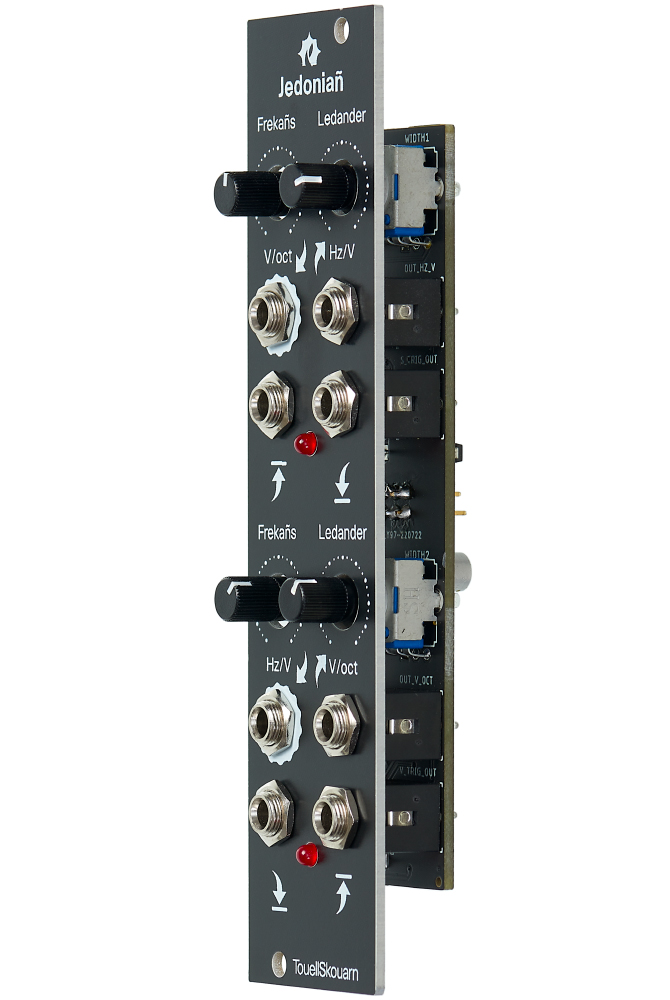

The Touellskouarn Jedonian is a bidirectional Hz/V converter. It allows to convert S-Trig to V-Trig and back, and to convert V/Oct to Hz/V and vice versa. The Hz/V standard works with Korg MS and old Yamaha CS among others.

Possible applications of the Jedoniañ are using a Hz/V synth as a CV keyboard for your Eurorack or vice versa, conversion of voltages from a 1V/oct MIDI/CV interface to the Hz/V characteristic and so on.

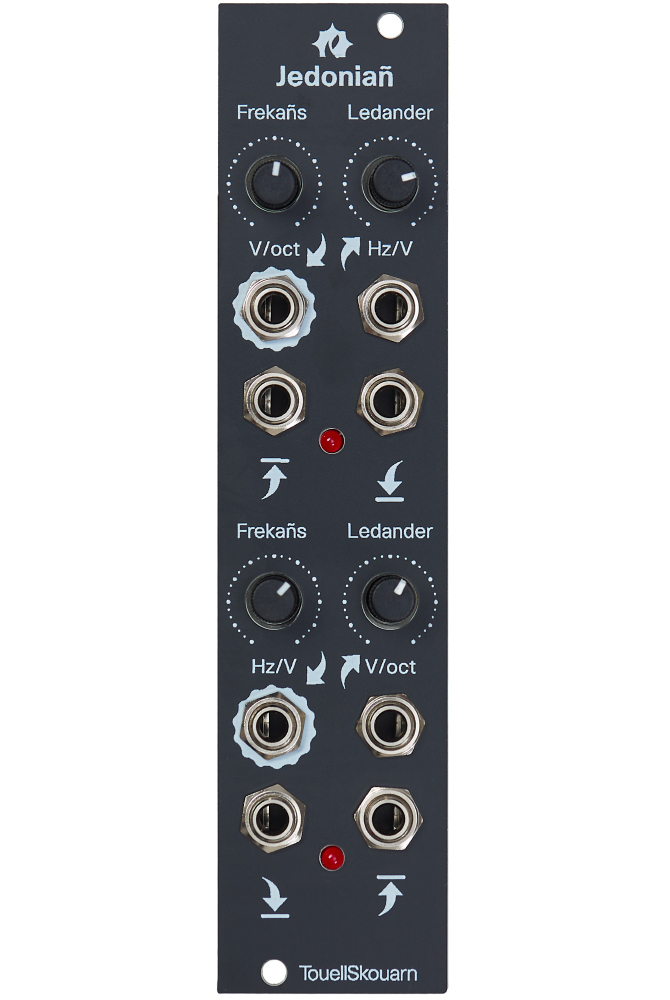

The upper section converts from 1V/octave to Hz/V and V-Trig to S-Trig.

The bottom unit converts from Hz/V to 1V/octve and S-Trig to V-Trig.

For correct adjustment between both units tune them to the same initial frequency which is done with the Jedoniañ’s Frekañs potentiometer. Then play two, or better three, octaves higher and adjust the spread with the Ledander control. Then repeat the procedure one or two more times until the setting is perfectt and that’s it.


160€


6 HP
