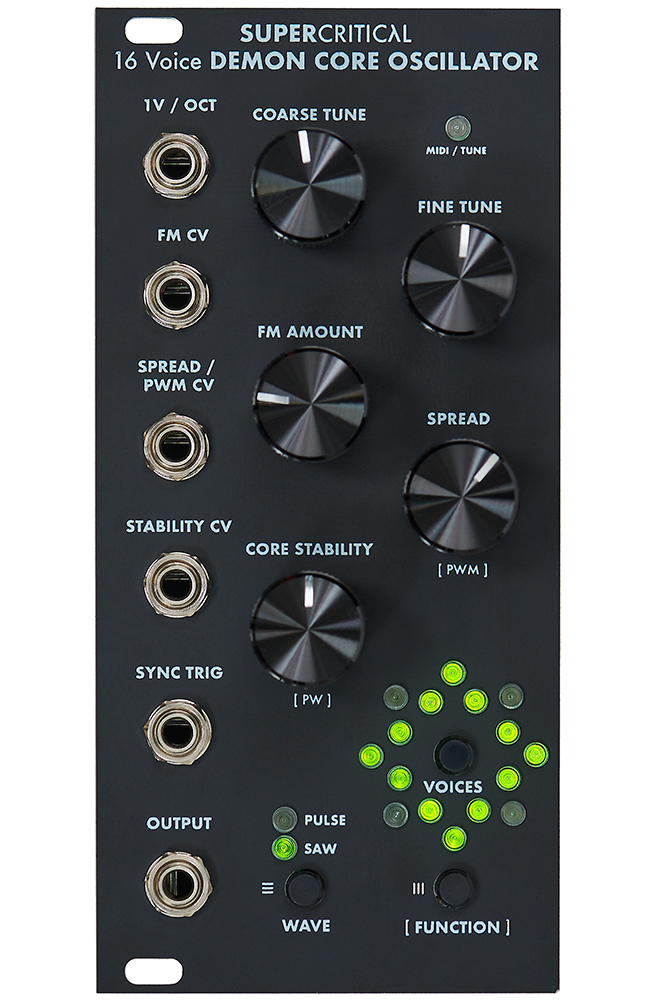

The Demon Core Oscillator is a 16-voice DCO based on classic keyboard synthesizers.
This module offers also a static detune spread and a CV controllable core stability feature similar to Sequential Synthesizers. It introduces VCO-like pitch drift and jitter, allowing the module to sound like 80’s polysynths.
With the help of the separately available Expander, the module can be played polyphonically via MIDI.
- 16 configurable voices (octave, stacks)
- Saw and pulse waves with PWM ranging from 0-100%
- Coarse tune for 6 octave range with half-step increments
- Fine tune for ± half step range
- A blinking tuning indicator for finding C note in every octave and A440 fine tuning
- 1V/oct master pitch CV
- Linear FM CV (±8V) with attenuator
- Combined Spread / PWM CV (±8V) with offset function
- Stability CV (±8V) with offset function
- Trigger input for synchronizing the phases for all waves
Power consumption: 120mA at +12 V and 20mA at -12 V
Depth: 25mmHP : 12
