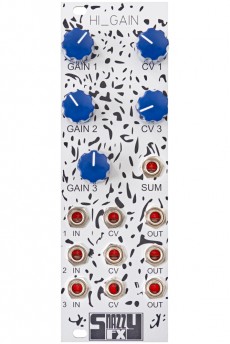

The Hi_Gain is a specialist for wavefolding, distortion, saturation and the like. The module features three transistor-based VCAs plus a sum output. With daisy-chaining and feedbacks, very complex effects can be achieved.

The VCAs come equipped with the following connectors and control elements:

Stage 1 – A dirty VCA

  • DC-coupled audio input
  • Gain potentiometer
  • CV input plus attenuator – For controlling the VCA. A connection between this jack and the sum channel or the single output of another section can create great feedback effects.
  • Audio output, normalized to the input of the second stage.

Stage 2 – Another dirty VCA

  • DC-coupled audio input
  • Gain potentiometer
  • CV input without attenuator – For controlling the VCA. This jack is an excellent choice for creating feedbacks as well.
  • Audio output, normalized to the input of the third stage.

Stage 3 – This stage gets louder with negative signals and quieter with positive ones.

  • DC-coupled audio input, normalized to the input of the second section.
  • Gain potentiometer
  • CV input plus attenuator – For controlling the VCA. Again, feedback routings are expressly desired.
  • Audio output

The sum output emits a mixture of all three VCAs. More precisely, the mix channel considers the results of the first two VCAs as “normal” signals and the third stage as a “DC point shifting” input. The phase of the sum output is inverted. Interesting cancellations can be achieved by mixing audio material coming from the single outputs and the sum connector.


Power consumption: 15mA at +12 V and 15mA at -12 V

HP : 8
