Flame Joystick Rekorder

Flame Joystick Rekorder

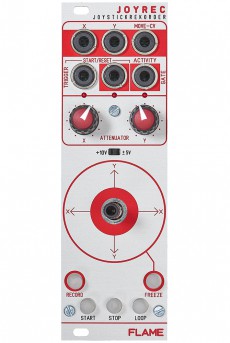

Small compact joystick module with recording function.

The module can record the joystick movement to a length of about one minute. The sequence remains stored in
the battery-backed RAM after switching off. When playing back the sequence, the playback
speed can be manipulated.

There is a FREEZE function to hold the current joystick position. Also there are an external reset
input. In addition, when moving outside the center position, a GATE is set and an additional positive
CV voltage (summation of X and Y) is output in dependence. A GATE / START input is used
for resetting or recording in sync.

The ranges of the X / Y output voltages are bipolar adjustable from approx. +/- 5v or unipolar
from approx. 0 to + 10v. Both channels X and Y have a passive attenuator potentiometer, so that
the voltage range can also be set lower.


  • CV-Out-X:     CV output X-axis bipolar or unipolar
  • CV-Out-Y:     CV output Y-axis bipolar or unipolar
  • CV-OUT MOVE:     CV output joystick movement 0..+5v
  • Trigger-In:     Trigger input Reset/Start
  • Trigger-out:      Trigger output Reset/Start signal ca. 10ms lenght
  • Gate-ACTIVITY:     Gate output joystick movement

Power consumption: 30mA at +12 V and 5mA at -12 V

Depth: 40mm

HP : 8

Article n°

  • FLJRec
