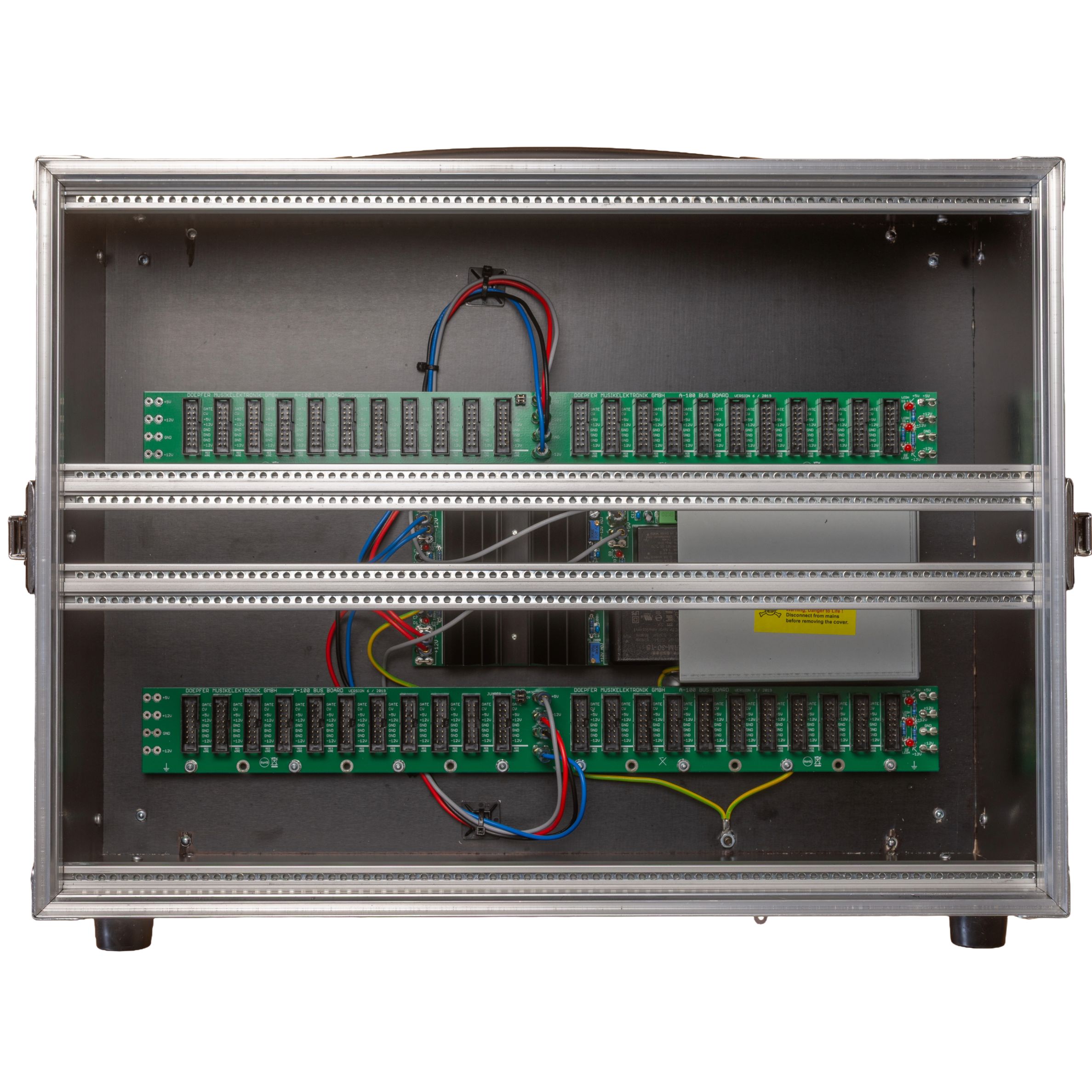

The A-100P7 is the trusty PSU 3 Power Supply with two busboard but now with an
additional 1U (Intellijel Format) in the middle.

Overview:

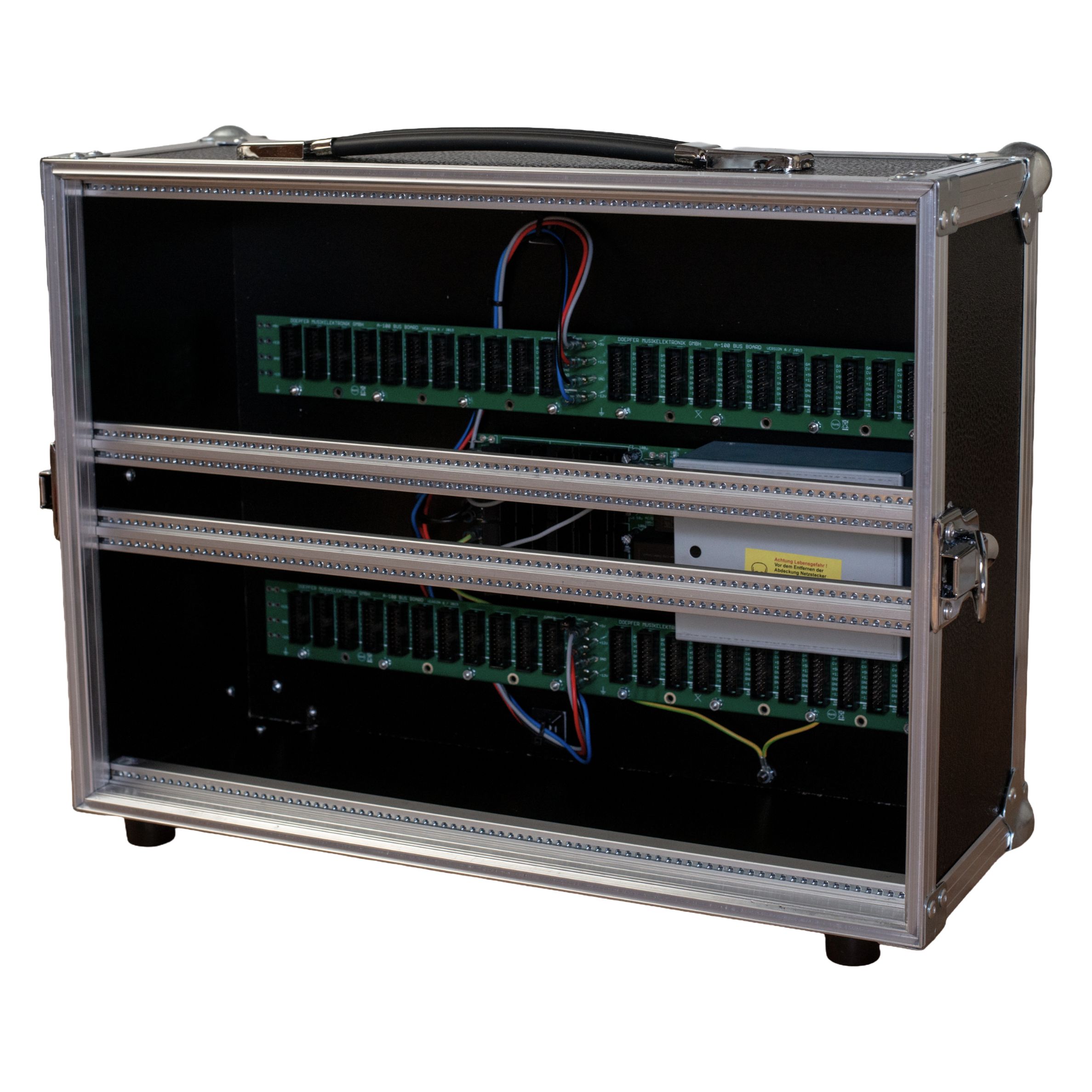

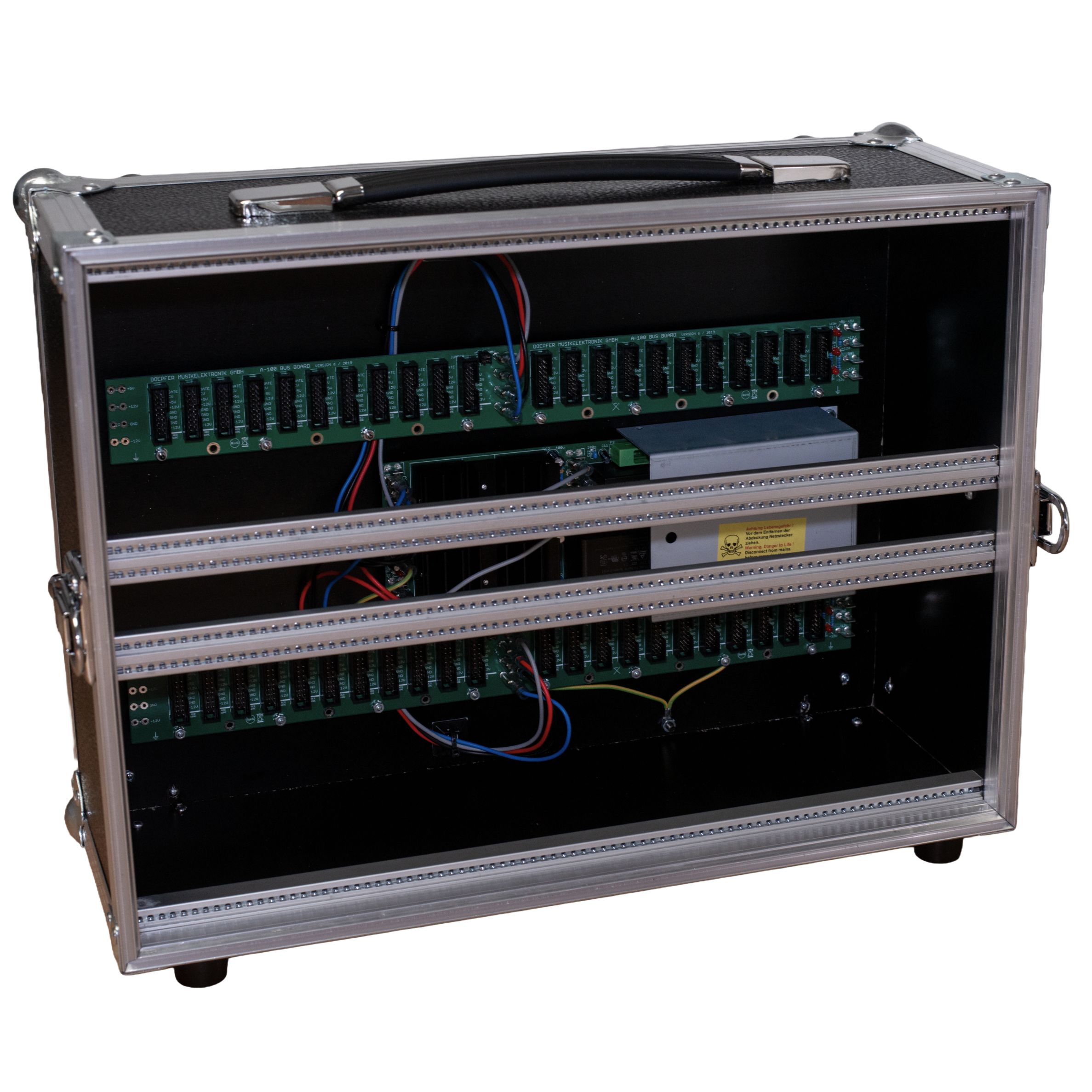

• New version of the legendary Doepfer suitcase
• Sturdy build with lid and carrying handle
• Three rows with 84HP each for installing 3U / 1U Modules
• 2x standard 3U row
• 1x 1U row (Intellijel format, fixed in the middle)
• 2 busboards with 44 module connections in total
• Integrated A-100PSU3 power supply (100-240V)
• Combines switching and linear regulation for lowest noise
• Output voltages/ currents:
  • +12V / 2000mA
  • -12V / 1200mA
  • +5V / 2000mA (max. 4000mA when the 2A fuse is replaced by 4A)
• Usable depth for modules:
  • 100mm, 70mm directly above the PSU
• Product Dimensions:
  • 46,50 W x 34,00 H x 23,50 D c
  m (with lid and rubber feet)
