Analogue Systems RS-290 Sampler/Delay

Analogue Systems RS-290 Sampler/Delay

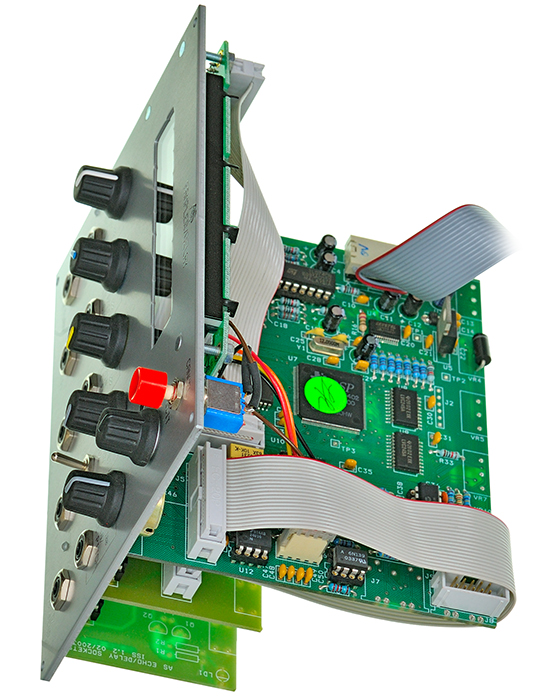

Analogue Systems RS-290 Sampler/Delay is a voltage controlled delay and sampler module.

Stunning 46.9khz, 16bit, 5.5 second long stereo echo and delay with user assignable control of MIDI, analogue clocks, triggers, and CV Calculates the correct delay time to the incoming tempo. 50 user memories to create personal comb filter, flanging, chorus, pitch shifting and echo programmes. Can recreate bbd and tape echo effects and up to 29 seconds available in mono mode. 2 modes of delay are available Tape Delay and the recently developed Digital Delay. In sample mode the user can voltage control and trigger the source material in ways unavailable until now. Using the RS295 optional expander samples can be dumped and retrieved using Sys Ex dumps.

All modules by Analogue Systems come ready to use with five years warranty mounted in the by the customer preferred rack or cabinet.

For a timely delivery please confirm your choice and configuration as customer or specialised dealer via email here:

Power consumption: 360mA

Depth: 115mm

HP : 36

Article n°

  • AORS290
