ACL - Envelope X3

ACL - Envelope X3

The Envelope X3 gives you three ADSR-envelopes in one module. This envelope is inspired by the one of the System 100m which is very strong in creating percussive sounds.

Each of the three envelopes can be triggered via their own gate inpus. The inputs are normalised, therefore all three envelopes can also be triggered at once by one common trigger input.

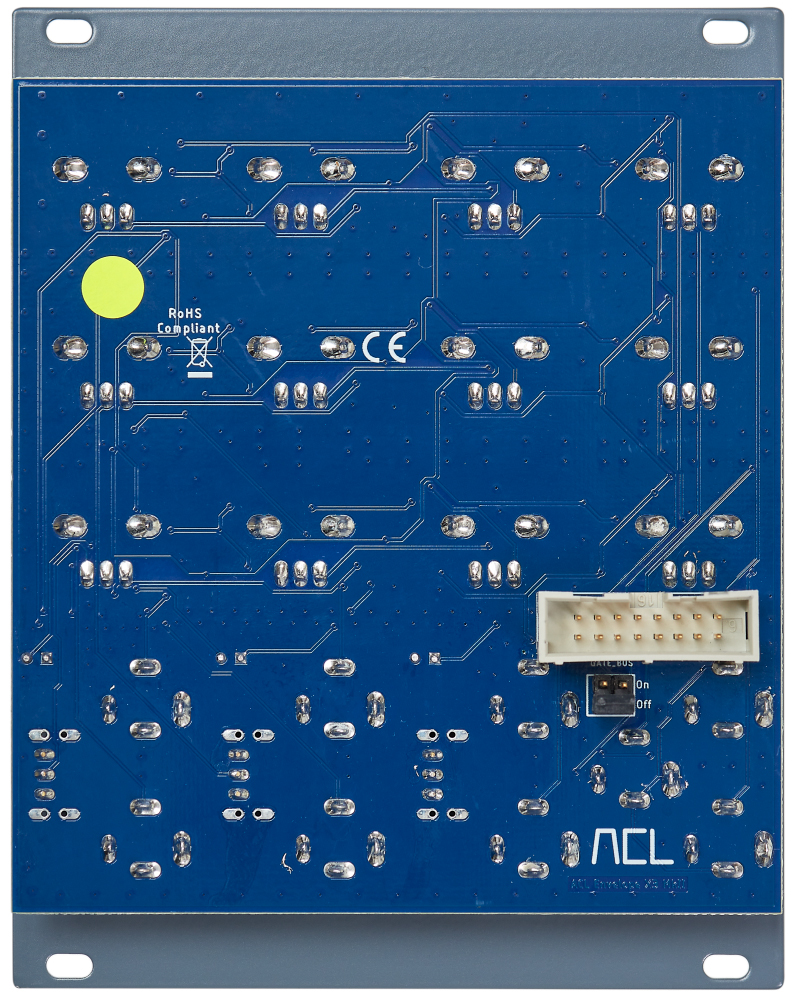

Each envelope generator has a normal and inverted output, the range can be switched between short and long. The module is made of precision components, as used in measuring instruments for instance, in order to keep the parameters exact and stable for a long time. As flashly LEDs for visualisation were omitted the power consumption of the Triple Envelope Generatois quite low.

Power consumption: 36mA at +12V and 23mA at -12V

Depth: 22mm

HP : 21

Article n°
