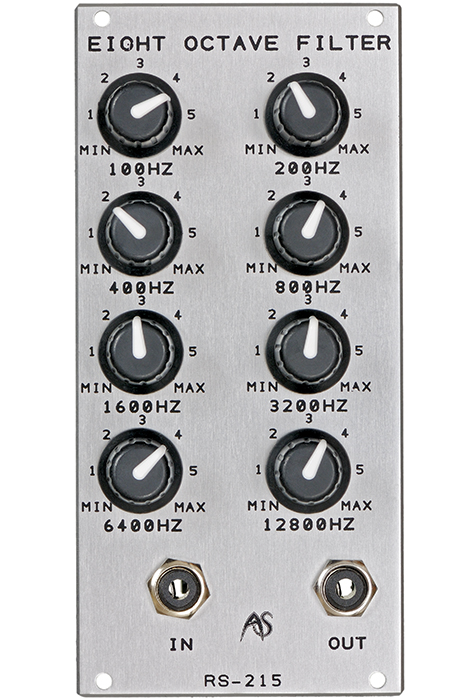

Analogue Systems RS-215 Eight Octave Filterbank

Analogue Systems RS-215 Eight Octave Filterbank

Filterbank module with eight fixed filter frequencies, each one octave apart. It is the successor of the RS-210 which was based on a rare 70ies filter bank from EMS.

The newer version has different frequencies for a wider frequency range and the filters have a higher slope. The fixed frequencies are 100Hz, 200Hz, 400Hz, 800Hz, 1.6kHz, 3.2kHz, 6.4kHz and 12.8kHz

Each frequency has a dedicated control attenuating the according filter band. If only one control is turned all the way down, the frequency band will be attenuated -9dB. If all filters are closed then the attenuation is infinite. At maximum position of the control the frequency band´s level is almost unity gain.

All modules by Analogue Systems come ready to use with five years warranty mounted in the by the customer preferred rack or cabinet.

For a timely delivery please confirm your choice and configuration as customer or specialised dealer via email here: www.analoguesystems.de

HP : 12
.
.

.

Article n°

  • AORS215

225
