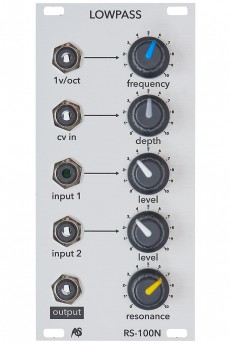

Analogue Systems RS-100N Lowpass


This low pass filter is a very good -24dB/octave Moog filter, based on the classic Moog cascade with selected, low-noise transistors. Being the successor of the RS-100, the new "S" version features several improvements regarding stability, tracking, distortion behavoiur and also the frequency range.

Two signal inputs, resonance, manually and voltage controlled cutoff frequency. Frequency range 10Hz to 35kHz with CVs applied. The transistors used in the filter cascade are low-noise and have been selected and matched in pairs to improve the frequency response over the whole frequency range. A better stability guarantees, after a one minute heating time, that the filter can be used as a clean and well tracking sine wave oscillator.

This Dual Bus version features two power connectors, meaning it can be directly connected to either an Analog Systems or a Doepfer modular system. – Adapters are no longer necessary.

All modules by Analogue Systems come ready to use with five years warranty mounted in the by the customer preferred rack or cabinet.

For a timely delivery please confirm your choice and configuration as customer or specialised dealer via email here: www.analoguesystems.de


195€

Power consumption: 30mA

Depth: 65mm


12 HP
