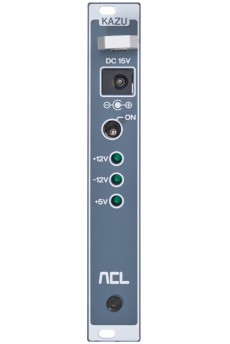

ACL - KAZU PSU-Modul

ACL - KAZU PSU-Modul

This PSU solution is of high quality and delivers a constant current without getting hot.

  • Switching power supply, developed especially for modular systems.
  • Minimal voltage peaks and interferences. – The result: An extremely low noise floor and very honest sound.
    • +12 V – Regulated, filtered, less than 2 mV fluctuations and noise at full capacity, typically 1,5 mV.
    • -12 V – Regulated, filtered, less than 2 mV fluctuations and noise at full capacity, typically 1,5 mV.
    • +5 V – Unregulated, filtered, less than 40 mV fluctuations and noise at full capacity, typically 30 mV.
  • Very little heating, even at high loads
  • Overvoltage and short-circuit protection
  • Primary voltage: 100 – 240 V

Maximum continuous power:

  • 1000 mA at +12 V
  • 1000 mA at -12 V
  • 500 mA at +5 V
HP : 4
.
.

.

Article n°

  • ACLkazu

225
