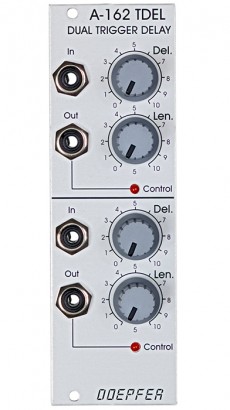

Module A-162 contains two identical circuits that generate a trigger signal with adjustable delay and lenght from an incoming rectangle signal (e.g. gate, trigger, rectangle output of an LFO or VCO).
The rising edge of the incoming signal is used to trigger the new trigger signal. This module makes it possible to delay the onset of a trigger pulse, and also change its length. On each of the two units, two controls can alter the onset time and duration of triggers, from about 2 ms up to more than 10 seconds.
A control LED shows the generated signal.
Power consumption: 40mA at +12V and 0mA at -12V
Depth: 45mmHP : 8
