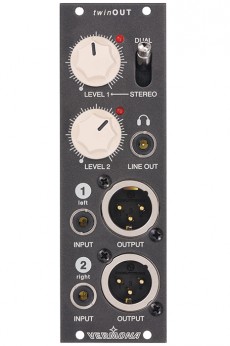

Vermona Modular twinOut

Vermona Modular twinOut

Beside spectacular sound-engines and -shapers, conventional and uncommon sources and modulators of control voltages, a modular synthesizer also needs a choice of modules to handle the daily routine. twinOUT is such a module - the perfect connection to your studio.

This DI-box in a module offers two adjustable, electronically balanced XLR-outputs for stereo or independent dual-mono use. An additional headphone output, also suited for line level output completes twinOUT’s feature-set. To bring out the best of your modular synthesizer, there’s no getting around the twinOUT! Just like every VERMONA module, each twinOUT is produced in Vermona’s "elektroakustische Manufaktur”.

  • Frequency Range: 20 Hz - 20 kHz (±0,2 dB)
  • Signal-to-Noise ratio: > 90 dB
  • THD+Noise: 0,01% Inputs
  • Nominal Input Level: +6 dBu
  • max. Input Level: +24 dBu
  • Input Impedance: 100 kΩ Outputs
  • max. Output Level: +24 dBu (XLR)
  • Output Impedance: 600 Ω
  • Amplification: +12 dB
  • CLIP LED +12 dBu (XLR) +6 dBu (TRS without damper) –4 dBu (TRS with damper)

Power Consumption:

  • +12V: 25 mA
  • -12V: 25 mA
HP : 8
.
.

.

Article n°

  • HDB2out

229
