Verbos Electronics Control Voltage Processor

Verbos Electronics Control Voltage Processor

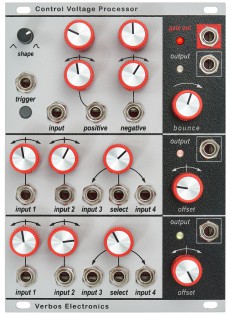

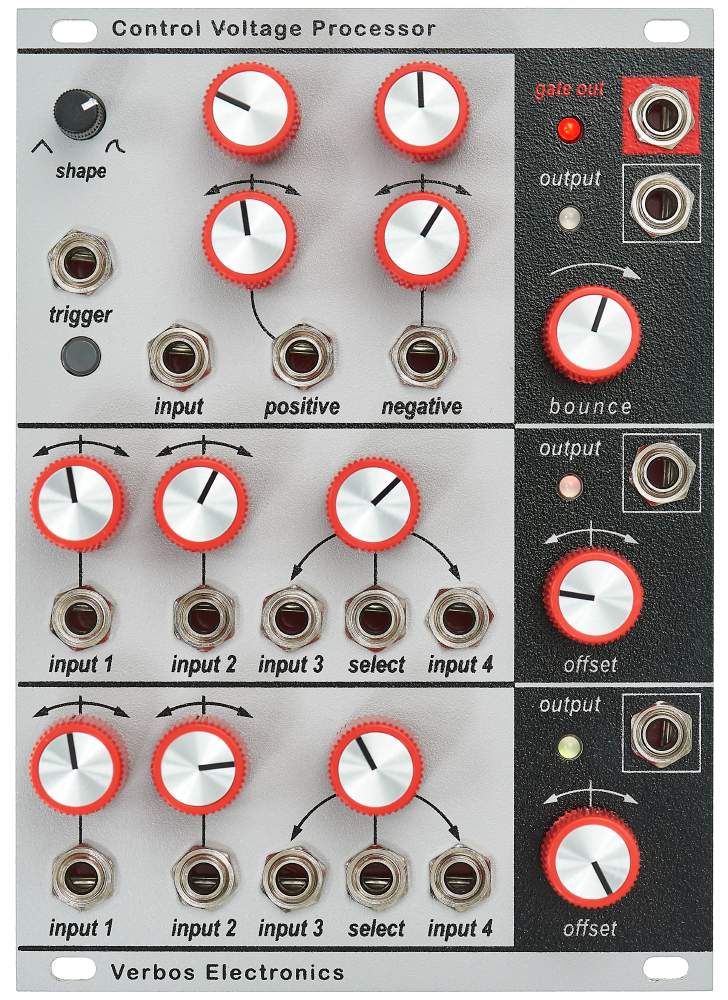

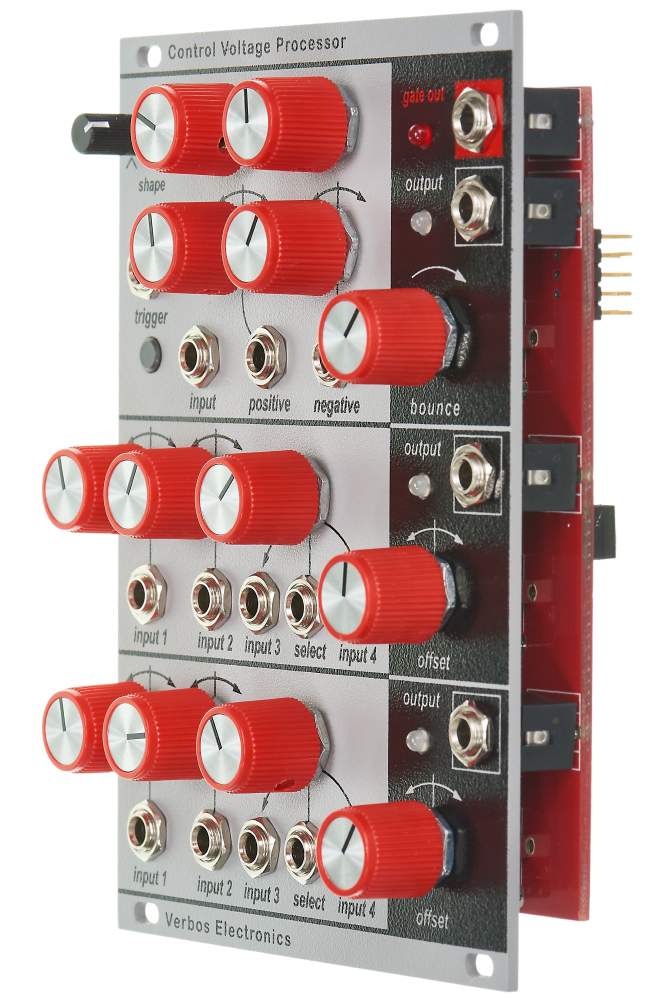

The Verbos Electronics Control Voltage Processor is a control voltage processor designed for live performance. It is composed of a slew limiter / envelope and two identical four channel CV and/or audio-mixers. The upper section is the slew limiter, which can also be triggered like an AD envelope. It features voltage controlled rise and fall time as well as adjustable slopes – independent of the time-base!  And then there is a special function called „bounce”. It pushes the envelope to overshoot/speed up for a short amount of time and then fall back to “normal”. It is one of these features that you will not want to miss once you heard it in action.

The lower section houses the two mixers.  Input 1 and 2 are attenuvertors, while Input 3 and 4 are accessed via a CV controllable DC-coupled crossfader. All inputs share one output which can also be offsetted by +/- 5v. Since you get two mixing sections (plus the slew limiter) really deep and complex functions can be accomplished.


.
.

.

Article n°

  • VECVP

535
