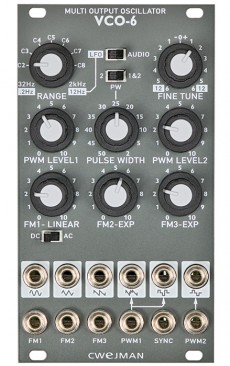

Cwejman VCO-6 Multi Output Oscillator

Cwejman VCO-6 Multi Output Oscillator

With the VCO-6 Cwejman offers an oscillator that gives you access to all waveforms simultaneously. Furthermore, besides exponential FM it offers linear FM, a feature that many people missed on the VCO-2RM. A specialty is the pulse width department having two pulses with individual PWM modulation and a sawtootch with PWM.

Oscillator tuning:
A rotary potentiometer with six positions is used to switch octaves, the frequency is set more exactly (±12 semitones) with the fine tune potentiometer. A switch activates LFO mode.
There are two exponential FM inputs with attenuators; fully clockwise they have a characteristic of 1V/octave
The linear FM input also has an attenuator and van be either AC or DC-coupled, depending on swith setting i.e. the linear FM works with Audio or CVs.

Pulse width modulation:
Pretty uncommon is that the PWM section is extensive and offers some nice functions: There are no less than three waveforms whose pulse width can be modulated; number 1 one pulse and a simultanously modulated sawtooth and number 2 another pulse wave. Pulse 1 and sawtooth share the PWM 1 input; 2nd pulse has it's own PWM 2 input. The PWM control can be assigned either to 1 or 1&2.

A sync input for hard oscillator synchronisation is available of course.

HP : 14
.
.

.

Article n°

  • CWVCO6
