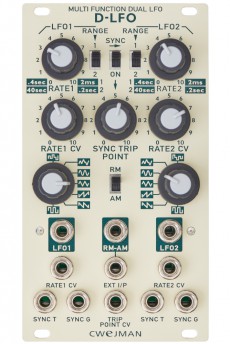

Two identical, flexible LFOs with very innovative sync possiblities and an enormous frequency range. The cherry on top is the amplitude- and ring modulation between the LFOs. An interesting tool for generating extraordinary waveforms and also very suitable for those somewhat different FM sounds.
Each LFO is voltage controllable, re-triggerable and provides you with seven waveforms – two different sample and holds, sine, triangle, falling and rising sawtooth and square. There´s a switch for two frequency ranges: 40s-0.2s und 0.4s-2ms duration per cycle, this means the LFOs go up to 20 kHz and can be also used as VCOs!
The RM/AM outputs ring modulated or amplitude modulated signals of the LFOs and thus creates one-of-a-kind modulations. The second LFO can be synced by the first; the sync-trip-point which can be set manually or by a CV defines at which point of the amplitude the synchronisation happens. An extraordinary feature! Additionally each LFO has external trigger AND gate inputs for re-triggering... very cool.HP : 14
