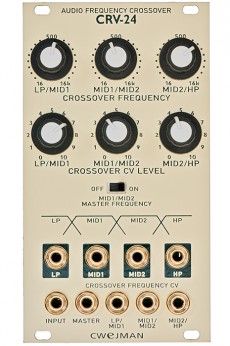

Cwejman CRV-24 Audio Crossover

Cwejman CRV-24 Audio Crossover

The CRV-24 is a four band crossover with 24 dB/octave slope for all four bands. Crossover frequencies can be controlled manually and by attenuable CV signals.

The incoming signal INPUT is splitted in four bands:

  • LP (low pass filter)
  • MID1 (high/low pass)
  • MID2 (high/low pass)
  • HP (high pass filter)

The CRV-24 is a four band crossover with highly effective 24 dB/octave slope for all four bands; low (LP), low mid (MID1), high mid (MID2) and high (HP). The crossover frequncies are controlled manually (LP/MID1, MID1/MID2 and MID2/HP) and by individual attenuable CV signals (LP/MID1, MID1/MID2 and MID2/HP). All three crossover frequencies can be additionally controlled by the MID1/MID2 knob and MID1/MID CV signal (switch MID1/MID2 MASTER FREQUENCY) and also by an external signal inserted in to MASTER input.

HP : 14
.
.

.

Article n°

  • CWCRV24

660
